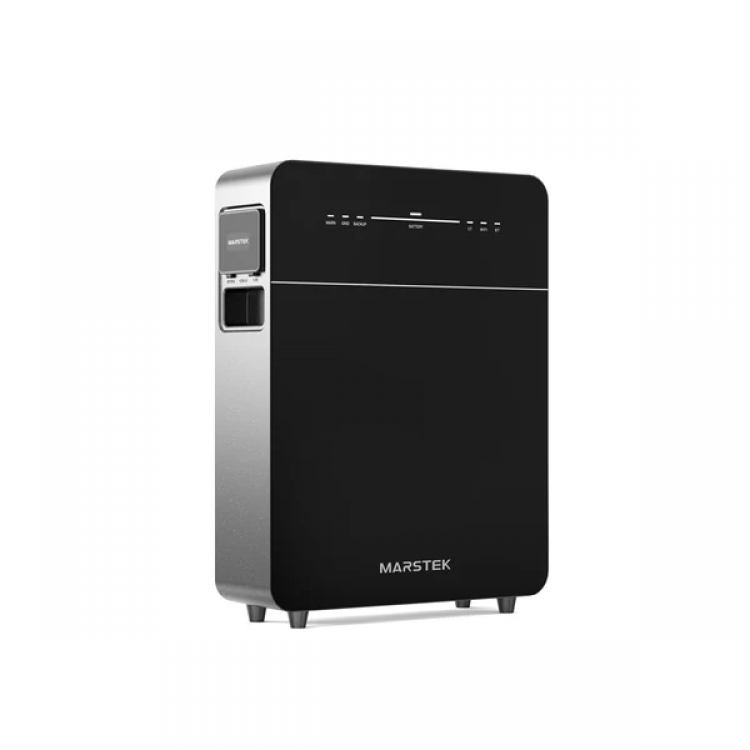

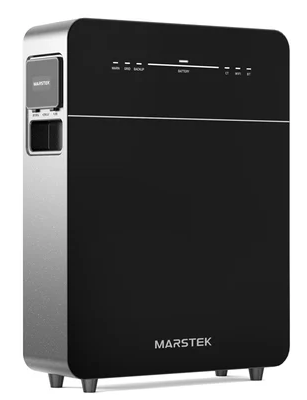

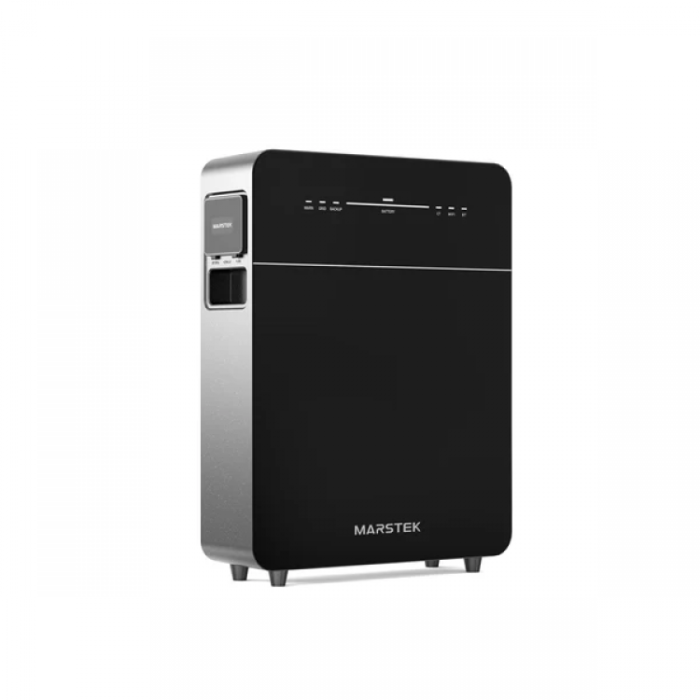

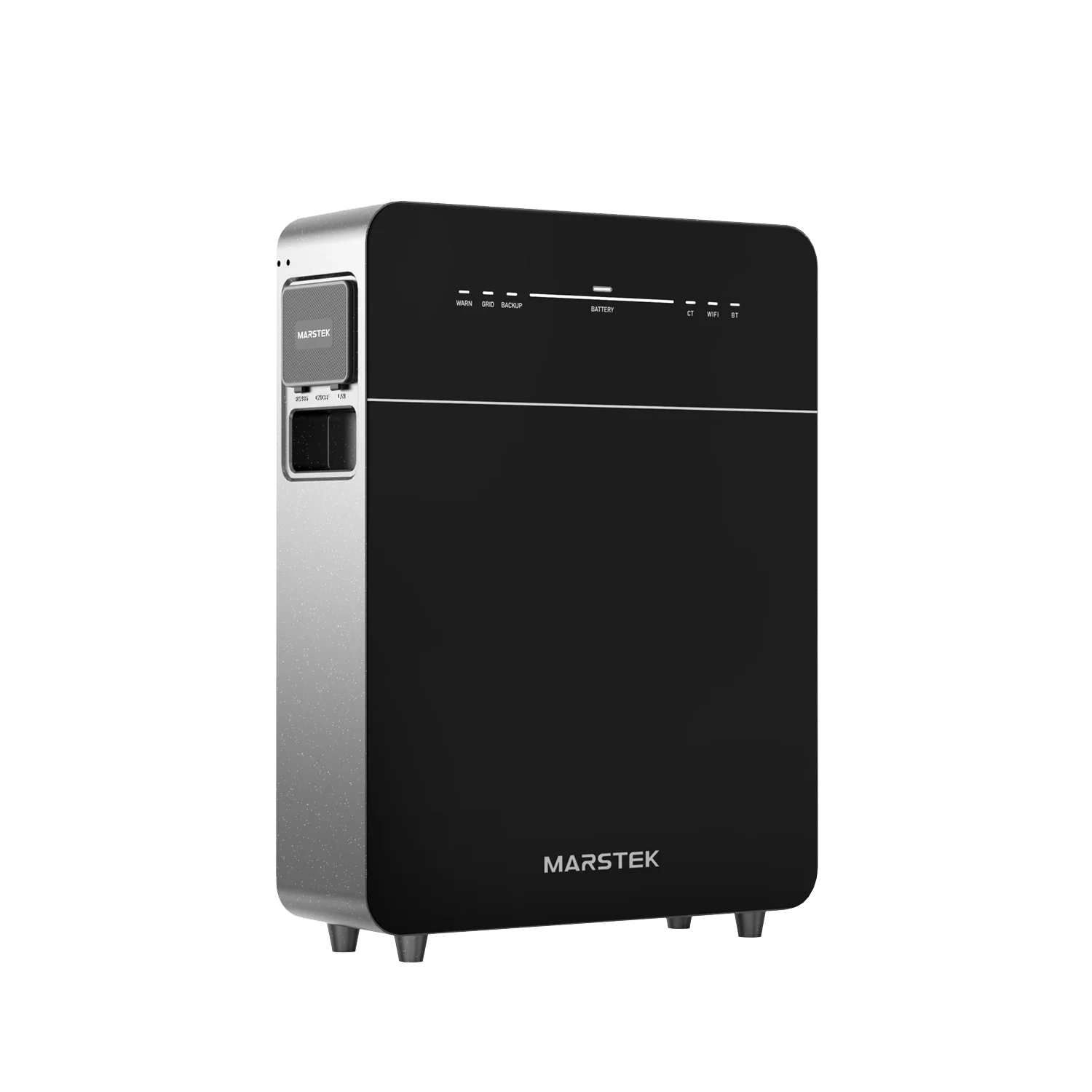

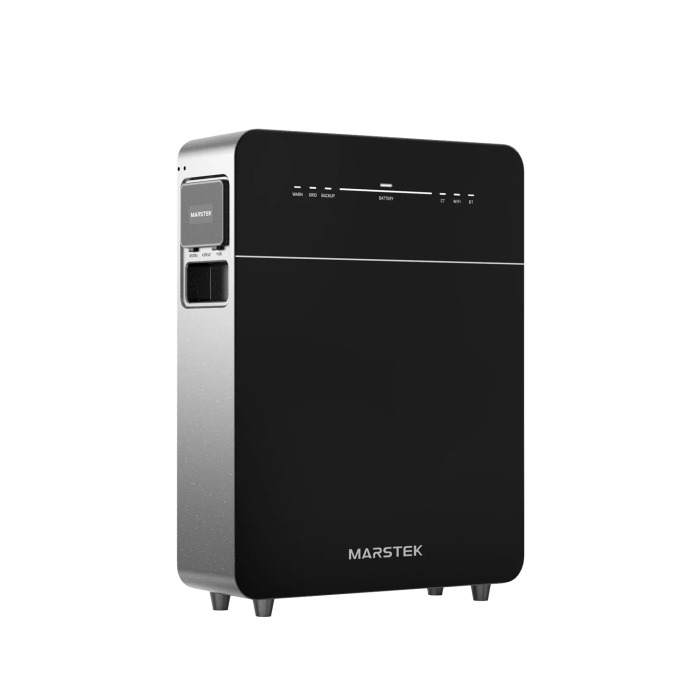

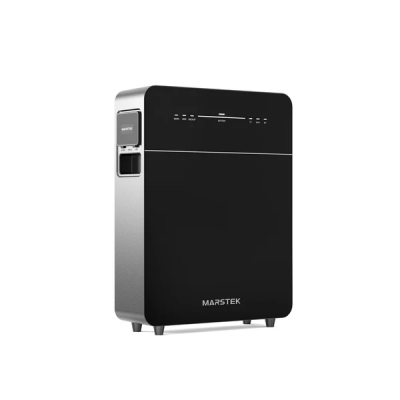

Baterie Marstek Venus E 3.0 AC-Coupled 5.12kWh LiFePO4 UPS 2.5kW
Durata de livrare: 4 - 5 zile
- Descriere
- Caracteristici
Marstek Venus E 3.0 este un sistem de stocare a energiei (ESS) cu cuplare AC (AC-Coupled), proiectat pentru integrare directa in orice instalatie fotovoltaica existenta, indiferent de marca invertorului solar. Cu o capacitate de 5.12 kWh pe baza de celule LiFePO4, sistemul ofera functie UPS cu timp de comutare sub 10ms, asigurand continuitatea alimentarii locuintei. Functioneaza in regim Plug&Play si incorporeaza optimizare AI pentru maximizarea autoconsumului.

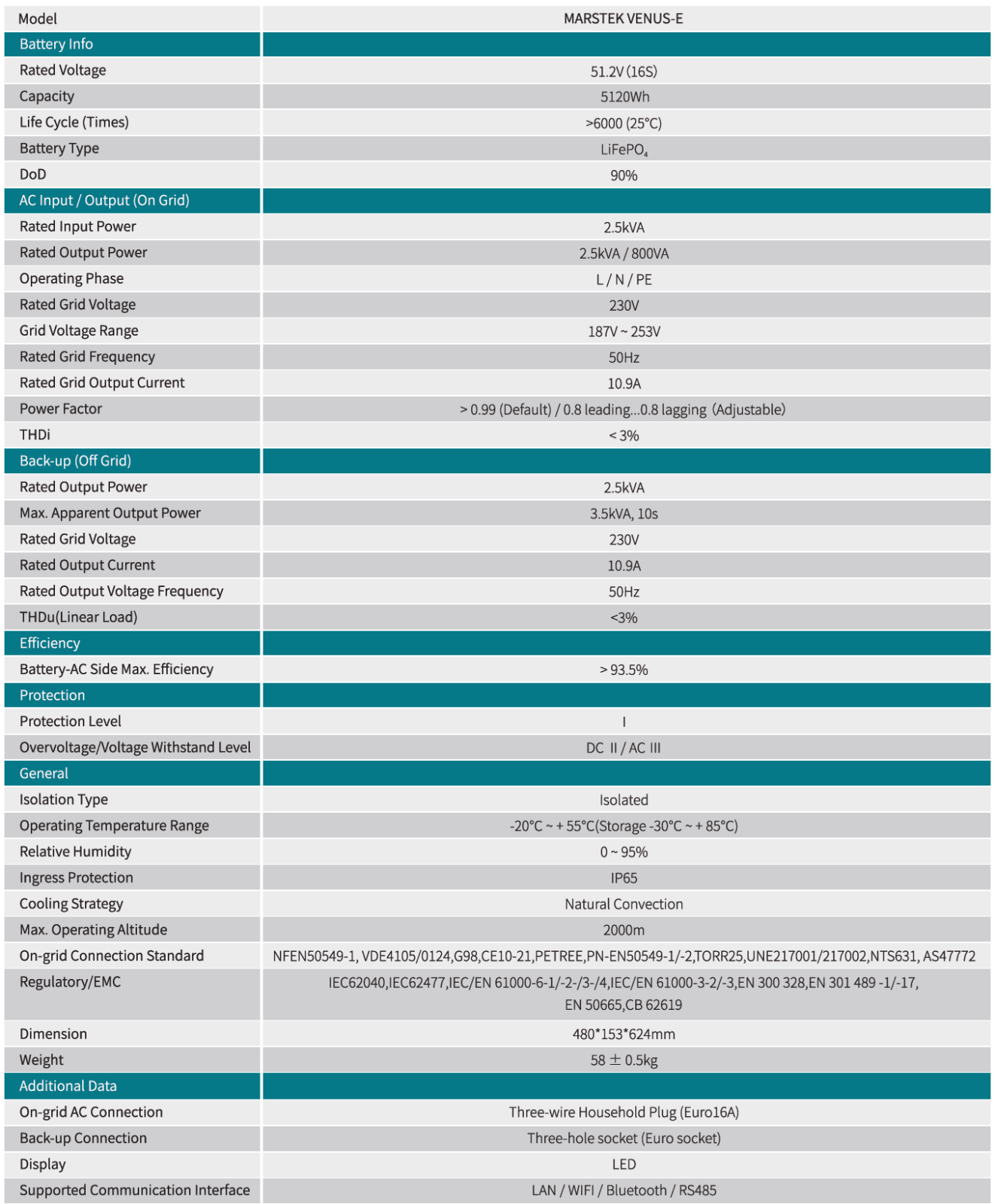

⚙️ Specificatii tehnice principale
- Capacitate: 5.12 kWh
- Tip celule: LiFePO4 (Litiu Fier Fosfat)
- Putere continua (on-grid): 800W
- Putere backup (UPS): 2.5 kW
- Timp comutare UPS: <10 ms
- Cicluri (la 70% capacitate ramasa): ≥ 6.000
- Garantie producator: 10 ani
- Greutate: 59 kg
- Conectivitate: LAN / RS485 / Wi-Fi / Bluetooth
- Protocol comunicatie: Modbus / API deschis
✅ Compatibilitate confirmata

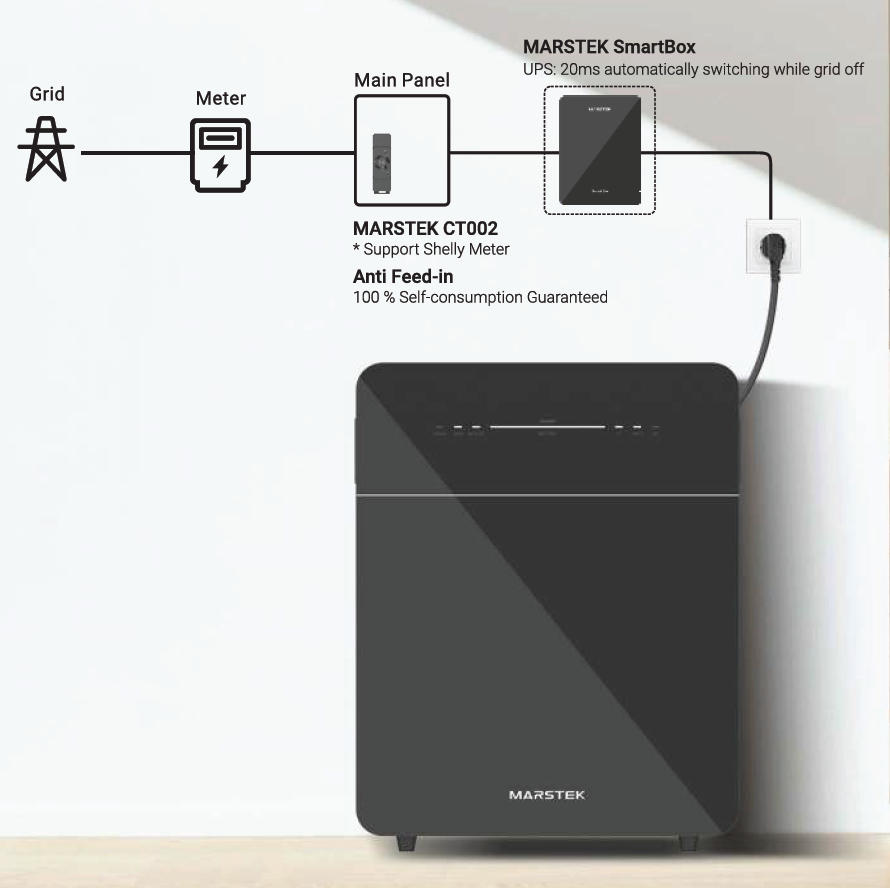

- Tip cuplare: AC-Coupled — se conecteaza pe partea de curent alternativ, nu pe DC
- Functioneaza CU: orice invertor fotovoltaic existent (string invertor, microinvertor, invertor hibrid) indiferent de marca, deoarece cuplarea se face exclusiv pe AC
- Contor inteligent compatibil: Marstek CT002 sau Shelly (achizitionate separat — necesare pentru functia de anti-injectare si optimizare AI)
- SmartBox Marstek: suportat pentru gestionare avansata multi-unitate si integrare EMS extern
- NU necesita inlocuirea invertorului existent — acesta este avantajul principal al arhitecturii AC-Coupled
Configuratii paralel:- Monofazat: pana la 3 unitati in paralel → 7.5 kW / 15.36 kWh- Trifazat: pana la 3 unitati per faza, total 9 unitati → 22.5 kW / 46.08 kWh
Model: Venus E 3.0
Capacitate: 5.12 kWh

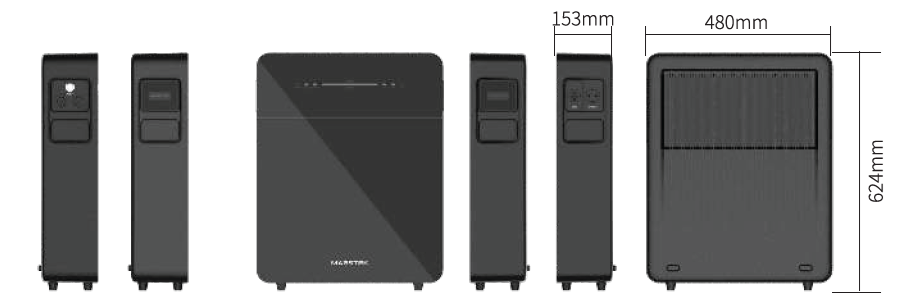

Greutate: 59 kg
